SIMPLE & PRODUCTIVE

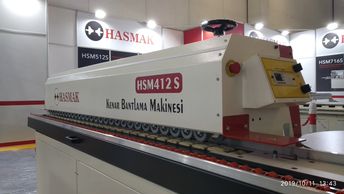

HSM412 S
HSM412 S
HSM412 S
Band thickness: 0.40-2.00 mm
Panel height : 8-48 mm
Feed speed : 12m / min
- Wide Glue Tank
- Easy to adjust glue thickness
- Safety Limiter (prevenst overfeeding)
- Wind brush cleaning of PVC chips
- Automatic tape infeed
- Automatic band knife
- Top and Bottom trim,lenght trim,corner rounding
- Smooth surface of band with radius scrappers
- Solvent cleaner
- Clean and smooth surface with buffing
- Integrated dust extractor
- Safety cover with LED lighting
- lateral rail support for large panles
- Band support table
HSM512 S
HSM412 S
HSM412 S
Band thickness: 0.40-2.00 mm
Panel height : 8-48 mm
Feed speed : 12m / min
- Wide Glue Tank
- Easy to adjust glue thickness
- Safety Limiter (prevenst overfeeding)
- Wind brush cleaning of PVC chips
- Automatic tape infeed
- Automatic band knife
- Couloured touch screen controller
- Smooth panel surface with Pre-milling
- Adjustable infeed fence stock removal for pre-milling
- Pre-heating of panle edge with Infrared Lighting
- Top and Bottom trim,lenght trim,corner rounding
- Smooth surface of band with radius scrappers
- Solvent cleaner
- Clean and smooth surface with buffing
- Integrated dust extractor
- Safety cover with LED lighting
- Lateral rail support for large panles
- Band support table
HSM612 S
HSM412 S
HSM612 S
Band thickness: 0.40-2.00 mm
Panel height : 8-48 mm
Feed speed : 12m / min
- Wide Glue Tank
- Easy to adjust glue thickness
- Safety Limiter (prevenst overfeeding)
- Wind brush cleaning of PVC chips
- Automatic tape infeed
- Automatic band knife
- Couloured touch screen controller
- Smooth panel surface with Pre-milling
- Adjustable infeed fence stock removal for pre-milling
- Pre-heating of panle edge with Infrared Lighting
- Top and Bottom trim,lenght trim,corner rounding
- Smooth surface of band with radius scrappers
- Solvent cleaner
- Clean and smooth surface with buffing
- Integrated dust extractor
- Safety cover with LED lighting
- Lateral rail support for large panles
- Band support table
HSM716 S
SOPHISTICA CNC ROUTER
HSM612 S
Band thickness: 0.40-2.00 mm
Panel height : 8-48 mm
Feed speed : 12-16m / min
- Wide Glue Tank
- Glue pre-melting
- Automatic uppress adjustment of panel height
- Easy to adjust glue thickness
- Safety Limiter (prevenst overfeeding)
- Wind brush cleaning of PVC chips
- Automatic tape infeed
- Automatic band knife
- Couloured touch screen controller
- Smooth panel surface with Pre-milling
- Adjustable infeed fence stock removal for pre-milling
- Pre-heating of panle edge with Infrared Lighting
- Top and Bottom trim,lenght trim,corner rounding
- Smooth surface of band with radius scrappers
- Solvent cleaner
- Clean and smooth surface with buffing
- Integrated dust extractor
- Safety cover with LED lighting
- Lateral rail support for large panles
- Band support table
SOPHISTICA CNC ROUTER
SOPHISTICA CNC ROUTER
SOPHISTICA CNC ROUTER
- Working Area : 2100mm x 3700 mm
- Z Axis Stroke : 220 mm
- Spindle Power : Hsd-9Kw / 12Hp -Hsk F 63
- Spindle Speed : 24.000 rpm
- Spindle Inverter : Mitsubishi -11Kw
- Motion motors : X Axis 1 x 1Kw / Y Axis 2 x 1,5Kw / Z Axis 1 x 0,75kw(Mitsubishi Servo)
- Servo gearboxes :Apex
- X Axis Mechacinal Parts : INA (Made in Germany) -25mm Linear Rail helical rack(Quenched and Tempered)
- Z Axis mechanical Parts : INA (Made in Germany) - 25mm Linear Rail Ball Screw
- CNC Control Systems : PC based
- Table Type : 6 asymetrical vacuum Zones Ployetyhlen table
- Vacuum pump : 305m3 GEV-(Made in Italy)
- Tool cahnger : Automatic 8 Tools capacity Rotary
- Lubrication : Automatic centralised
- Automatic Tool Lenght offset : Standart
- panel reference Pistons : Standart
